How to add new user and/or access level to Intouch?

Authors

For more details please refer to the documentation of Invensys Systems, "Wonderware® FactorySuite™ InTouch® User's Guide", Chapter 3 - Using InTouch Security.

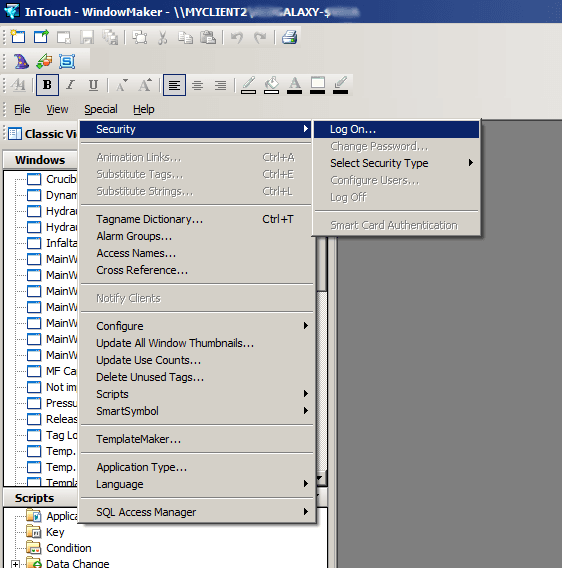

Fig. 1: Select “Security” and click “Log On…“
Fig. 1: Select “Security” and click “Log On…“

Inside the "Intouch Window Maker", navigate to the special menu, select "Security" and click "Log On...".

In the following dialog enter:

User: Administrator
Password: wonderware

Again, navigate to the special menu, select "Security" and click on "Configure Users".

Fig. 2: User configuration
Fig. 2: User configuration

Add a new user or modify an existing user.

To apply an access level to an object right click on the object and select "Animation Links" and "Disable".

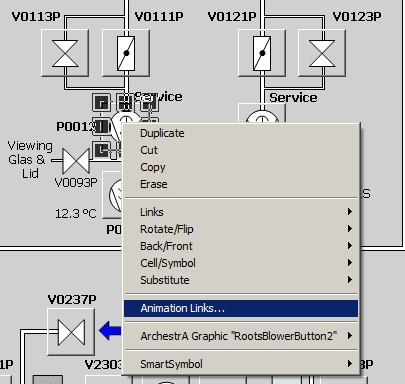

Fig. 3: Select an object...
Fig. 3: Select an object...

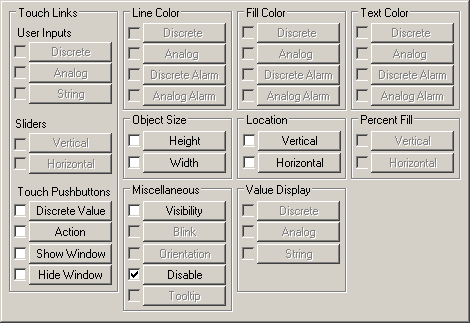

Fig. 4: ...and check "Disable"...
Fig. 4: ...and check "Disable"...

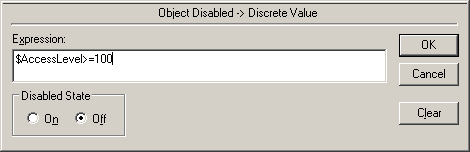

Add the Expression "$AccessLevel>=100" and/or modify the "AccessLevel" as necessary.

Fig. 5: ...to apply the access level
Fig. 5: ...to apply the access level
